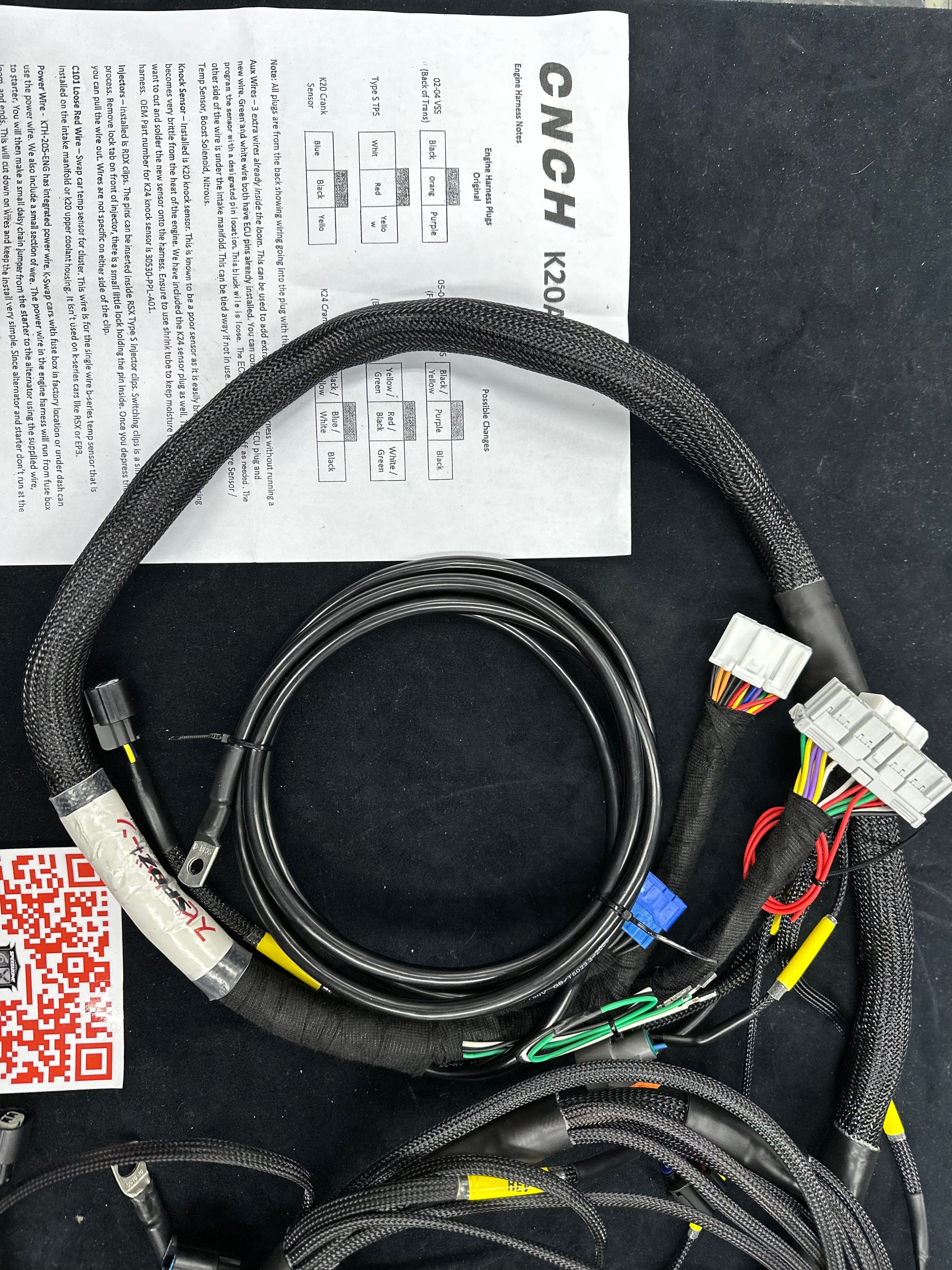

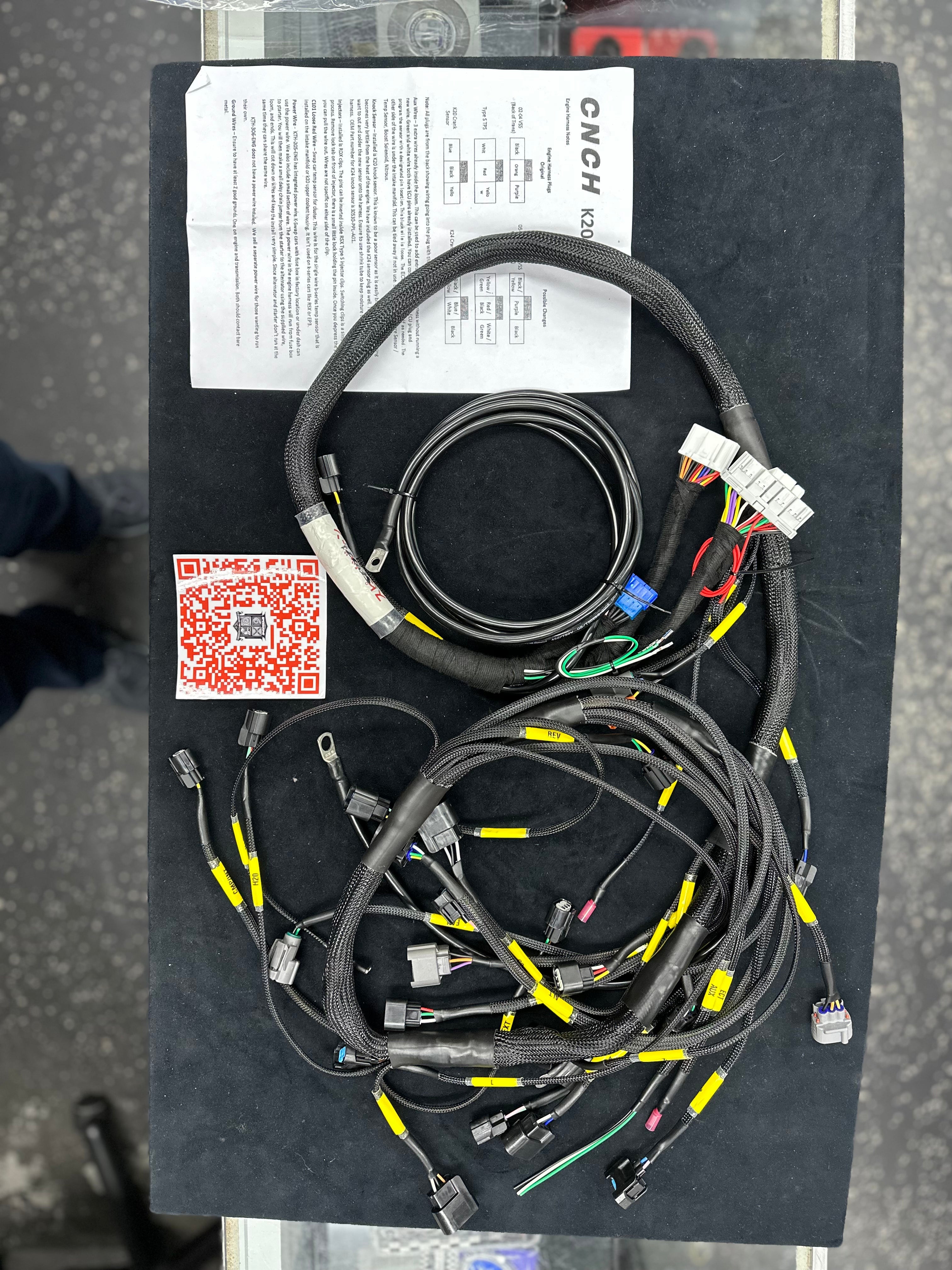

SPDZ1 K-SERIES RSX CIVIC SI EP3 K-SWAP TUCKED ENGINE HARNESS (INCLUDES POWER LEAD)
Description
Applications: 02-04 RSX Type S, RSX Base or EP3 with Type S or K24 Swap with extra power wire.

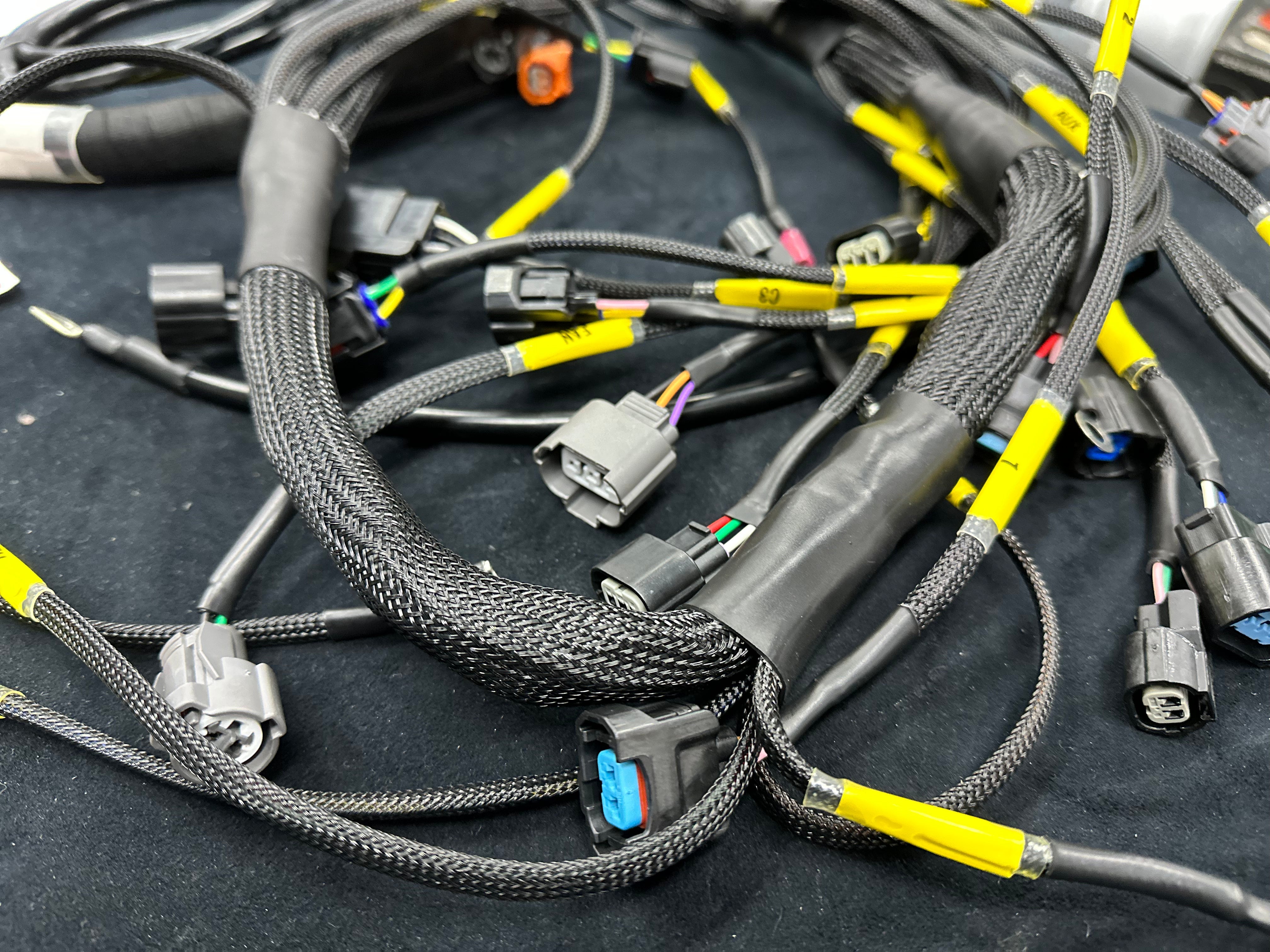

- All plugs included (Fan Switch, IACV, Coolant Temp Sensor, Both Knock Sensor Plugs)
- Covering is gas and diesel resistant and rated for -55 C to 15° C (-67 F to 320 F)
- SAE Certified Automotive Grade Wiring
- All plugs are labeled
- Tucked design
- Harness runs over valve cover (Can be covered with coil pack cover)
- Injector wiring runs from under manifold between middle runners.
- Ground wire relocated to stud under coil pack cover (instead of front of the valve cover)
- Includes single wire temp sensor wire (For k-swap cars stock cluster)
- 3 Aux wires run from ECU to under intake manifold. Two ECU pins pre-installed.
- Wiring long enough for both VSS low frequency or high frequency (High Frequency transmissions will require repining plug and slight modification to VSS)

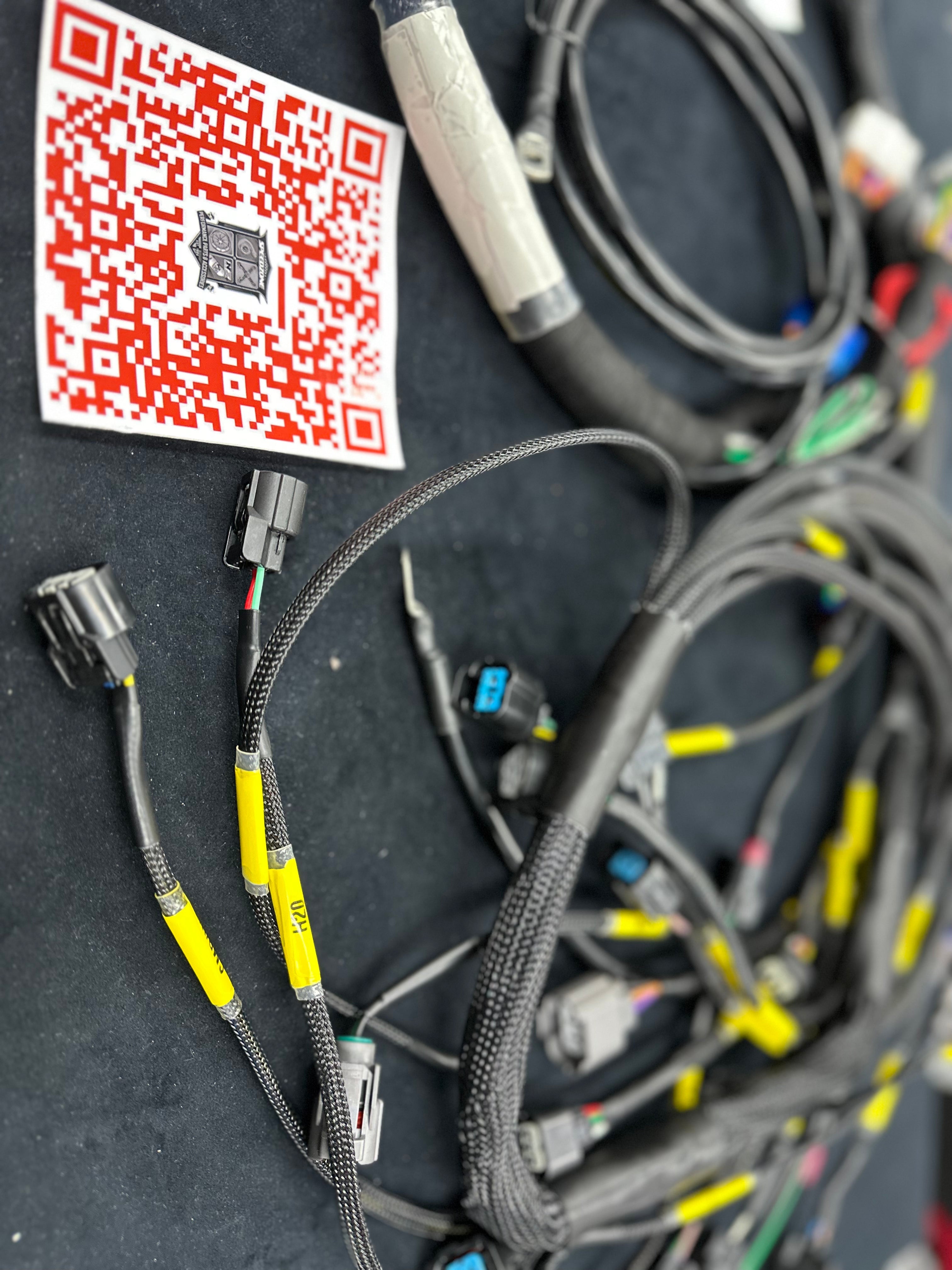

- Extra knock sensor plug included.
- Each harness is inspected and tested before shipping.
- RDX injectors plugs come standard (RSX Type S injectors use the same pin. Can be easily switched)
Base Model RSX and EP3 require 02-04 Type S swap or K24 with K20A2 Transmission
Acura RSX
2002 Acura RSX Manual 2003 Acura RSX Manual 2004 Acura RSX Manual
2002 Acura RSX Type-S 2003 Acura RSX Type-S 2004 Acura RSX Type-S
Honda Civic
2002 Honda Civic Si Hatchback 2003 Honda Civic Si Hatchback 2004 Honda Civic Si Hatchback 2005 Honda Civic Si Hatchback
**** SPECIAL INTRODUCTORY PRICING FOR FIRST BUYERS ON THIS HARNESS***
